FCB 21 Brake test
- Menu: 4.4.21
Description
FCB 21 is used to test the functionality and performance of up to 2 brakes. In a static test, the closed brakes are loaded separately with an adjustable torque.
When a brake is tested, the internal brake control is used.
In order to test 2 brakes separately, 2 additional external relays must be wired as NC contacts in the brake control DB 00. The two relays are controlled via 2 digital outputs of the inverter (parameter group Inputs/outputs > Basic unit/I/O card), which must be assigned the following functions:
- FCB 21 Brake test – close brake 1
- FCB 21 Brake test – close brake 2

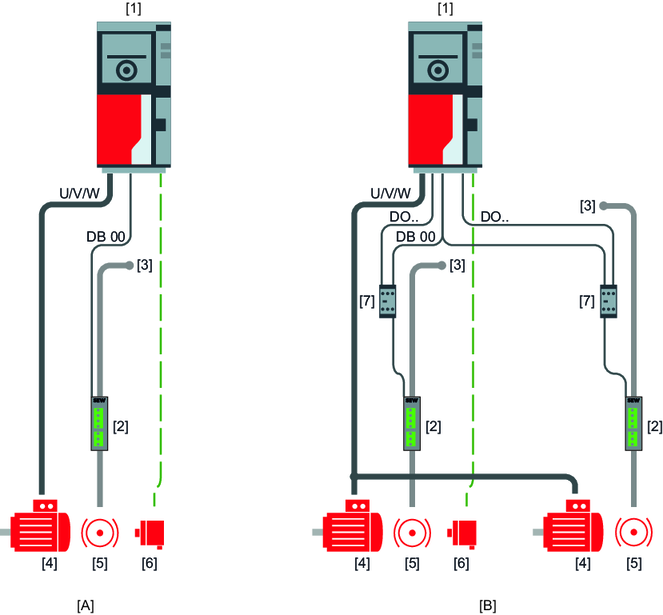

[A] | Basic setup for one brake |
[B] | Basic setup for two brakes |
[1] | Inverter |
[2] | Brake control |
[3] | Brake control supply voltage |
[4] | Motor |
[5] | Brake |
[6] | Encoder |
[7] | Relay |
U/V/W | Power supply from the inverter to the motor |
DB 00 | Brake control of the inverter |
DO.. | Digital outputs of the inverter |
