Location
Palencia, Spain
Industry
Tire industry
Application
Automated and environmentally friendly tire storage

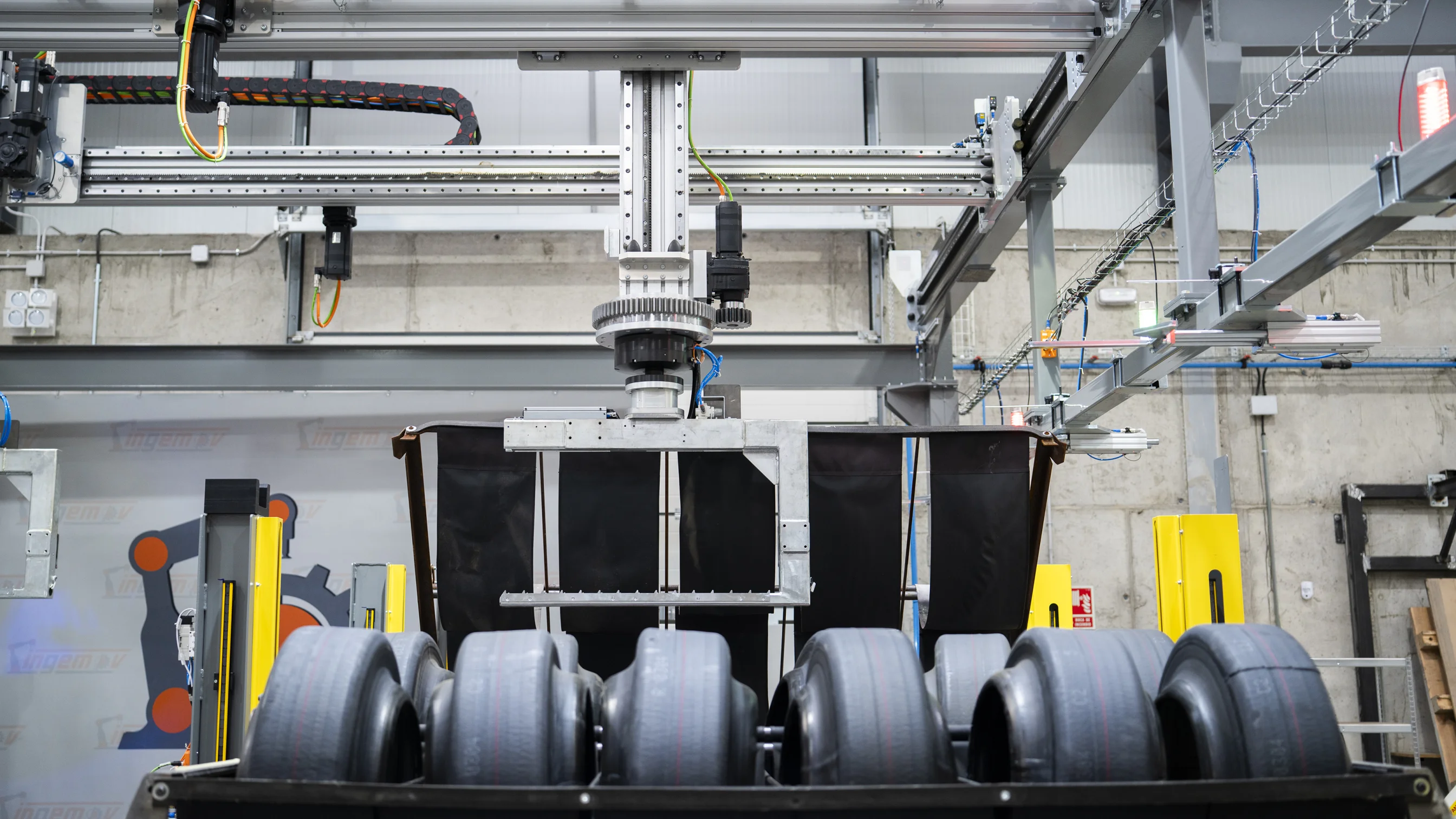

With more than 20 years of experience, Ingemov covers every link in the value chain, from mechanical and electrical design to automation and robotics. Ingemov offers sustainable, modern, and innovative solutions. The automated and environmentally friendly tire storage consists of two 3-axis gantry portals with a robotic arm, ten lifts and one lifter, turntable and trolley each, controlled by five cabinets equipped with electronics from SEW-EURODRIVE. The robotic arms, which move in parallel and independently of each other, de-palletize green tires from a two-level storage platform into tagged metal containers. Once the robotic arm empties the upper level, it performs a circular movement to open the intermediate lid to access the lower level. After emptying both levels, the arm closes the lid so that a trolley can transport the storage platform out of the working cell. In addition, there is further horizontal and vertical conveyor technology to transport the containers to different stations in the storage facility.
Gantry systems
Lifts, trolleys and turntables
When choosing a supplier, one of the things we value is the ease of selecting product variants that the supplier offers. Another issue to highlight is that it has absolute encoders, which makes sequencing easier because we avoid having to do a home every time we initialize the machine.Miguel Ángel BravoOther point is the trajectory by interpolation; sometimes we need to create circles, and the system allows us to do it in a single sequence. One of the aspects we value most is the supplier’s support during commissioning, in this case it is perfect because we have both local and even remote assistance with permanent availability. Being an international supplier allows us to export our installations and still maintain local support.
Thanks to our solutions from the MOVI-C® modular automation system, smart networking is inherently built into production. We offer you the right solution for smart automation for every step of the process – with the complete solution for configuring, starting up, and monitoring all MOVI-C® automation components. Visualization and simulation functions, as well as the provision of IoT usable data and measured variables, ensure maximum transparency.
Added value for you:
MOVIKIT® includes prefabricated software modules for simple drive functions, but also for demanding motion sequences. It is easy to start up applications thanks to the graphical configuration and comprehensive diagnostics of the software modules. The software modules are divided into categories for implementing simple drive functions, such as speed control and positioning, right through to motion control functions, such as camming and robotics. The individual software modules are operated via the real-time operating system of the MOVI-C® CONTROLLER or on the MOVIDRIVE® application inverter.
Added value for you:
Thanks to the end-to-end modular system developed by SEW‑EURODRIVE, our customers have access to millions of options and can find their customized product solution for any requirement. The objective of the modular system is to be able to combine as few components as possible into the greatest possible range of end products.
Added value for you:
Our MOVI-C® modular automation system integrates smart networking into production, offering comprehensive solutions for configuring, starting up, and monitoring all automation components.Mikel Orozko VenturaIt ensures quick startup, modern interaction design, real-time big data processing, and state-of-the-art safety technology. MOVIKIT® software modules facilitate easy startup through graphical configuration and diagnostics, covering simple drive functions to complex motion control. They offer intuitive parameterization, rapid program creation, and are freely available. SEW-EURODRIVE's modular system provides millions of options for customized product solutions, offering maximum flexibility, safe holding and braking with large loads, and usability in confined spaces.
