The didactics functional cut-away demo unit series for gear units clearly depicts the inner workings of a helical gear unit, helical-bevel gear unit, and helical-worm gear unit, as well as the way they interact with each other and how a gear unit works.

Turning the handwheel on the functional cut-away demo units demonstrates the interplay between different gearings as well as the resulting power flows (90° power flow with a right-angle gear unit and linear power flow with a helical gear unit) and gear ratios. Each cut-away demo unit has a nameplate with the technical data of a standard industrial gear unit and is used to teach gear unit technology, gear unit construction, gear unit analysis, and the hands-on work carried out on gear units in workshops. They are ideal for use in vocational schools, colleges, universities, and company training facilities.

The didactics functional cut-away demo unit series for gear units supports effective learning in terms of gear unit replication, industrial applications, and instruction in gear unit standards.

• Steady and stable thanks to aluminum base plate with rubber feet
• Components such as gear wheels, bearings, and shafts are protected against corrosion
• Sturdy plastic case available as an option for transportation and storage
• The gear unit demo units have been developed exclusively for training purposes

• Calculation or determination of gear ratios
• Determination of lubricant quantities for different mounting positions

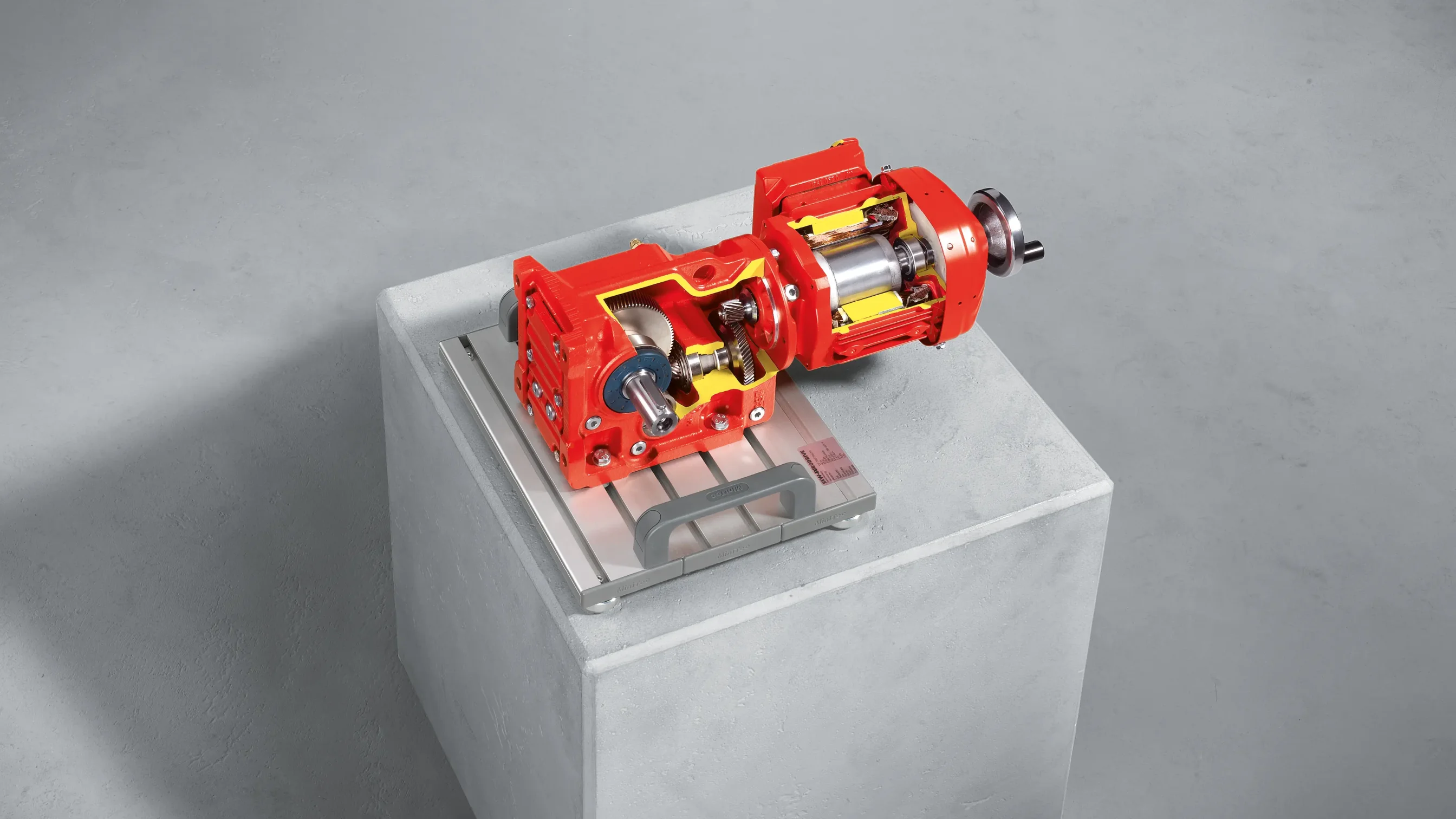

The didactics functional cut-away demo unit series for gearmotors clearly depicts how a helical gearmotor, helical-bevel gearmotor, and helical-worm gearmotor work. The demo units offer a practical insight into the way the motor and gear unit in an industrial gearmotor interact with each other and how different gearings influence the power flows and gear ratios – such as a linear power flow in a helical gearmotor and a 90° power flow in a right-angle gearmotor.

Turning the integrated handwheel demonstrates the mechanical processes. Each functional cut-away gearmotor demo unit has a nameplate listing the technical data for a standard industrial drive. The demo units are ideal for use in technical training, for example, at vocational and technical schools, colleges, universities, and company training facilities.

• Steady and stable thanks to aluminum base plate with rubber feet
• Mechanical components such as gear wheels, pinion shafts, and bearings benefit from permanent corrosion protection thanks to a high-quality coating
• Some components are also made from stainless steel
• The cut-away edges on the drive are highlighted in yellow The gear unit and motor housing are painted specifically for use as exhibits
• Sturdy plastic case available as an option for transportation and storage
• The gearmotor demo units have been developed exclusively for training purposes

• Calculation or determination of gear ratios
• Determination of lubricant quantities for different mounting positions
